GUN DRILL MACHINE
Deep Hole Drilling Machine Bed Type

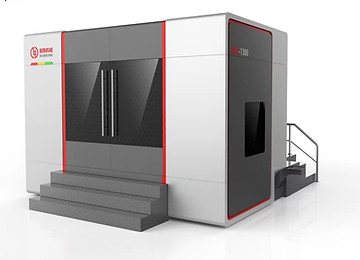

NCS-1300
Drilling diameter (mm) Ø 3-30
Maximum drilling depth (mm) 600
Table dimension (mm) 600x700
Motor speed range (rpm) 6,000
2 & 4 Main shafts deep-hole drill
NCSD-600 (double spindles)
Drilling diameter (mm) Ø 2-22
Maximum drilling depth (Z) (mm) 600
Drilling spindle (mm) 2 spindles
Motor speed range (rpm) 6,000
NCSD-1000 (double spindles)
Drilling diameter (mm) Ø 2-22
Maximum drilling depth (Z) (mm) 1,000
Drilling spindle (mm) 4 spindles
Motor speed range (rpm) 6,000
6 Axis and Drilling & Milling compound machine
NCS6Z2215-1500 (6 axis)
Drilling diameter (mm) Ø 3-35
Maximum drilling depth (mm) 1,500
Travel of vertical pillar (W) 800
Rotation of square guide way (degree) Head up 15 and Down 25
Table dimension (mm) 2,000x1,600
Motor speed range (rpm) 4,500
NCS6Z3015-1500 (6 axis)
Drilling diameter (mm) Ø 3-35
Maximum drilling depth (mm) 1,500
Travel of vertical pillar (W) 800
Rotation of square guide way (degree) Head up 15 and Down 25
Table dimension (mm) 2,400x2,000
Motor speed range (rpm) 4,500
NCSX1008-1000 (Drilling & Milling)
Drilling diameter (mm) Ø 3-35
Maximum drilling depth (mm) 1,000
Travel of vertical pillar (W) 350
Table dimension (mm) 1,200x800
Motor speed range (rpm) 0-3,000
